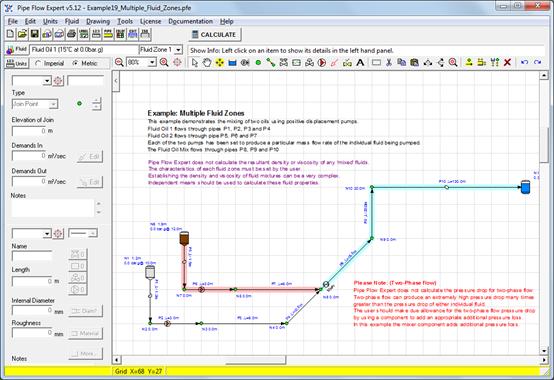

Example 19 - Pumping Fluid using Positive Displacement Pumps |
|||
|
Pipe System with Positive Displacement Pumps
This example demonstrates the mixing of two oils using positive displacement pumps to move the fluids from two separate tanks in to a common pipeline which then discharges in to a third tank. |
||

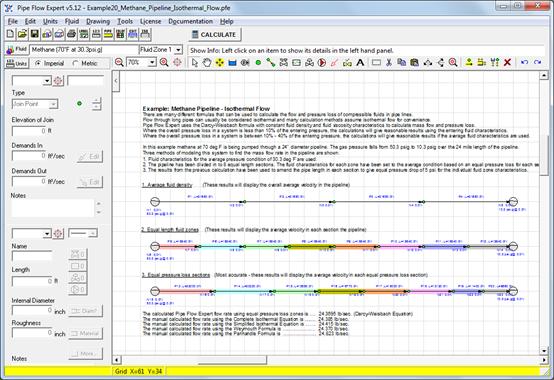

Example 20 - Methane Pipeline with Isothermal Flow |
|||
|
Top up Tanks with Pressurized Recirculation System In this example methane at 70 deg F is being pumped through a 24" diameter pipeline. The gas pressure falls from 50.3 psig to 10.3 psig over the 24 mile length of the pipeline. |
||

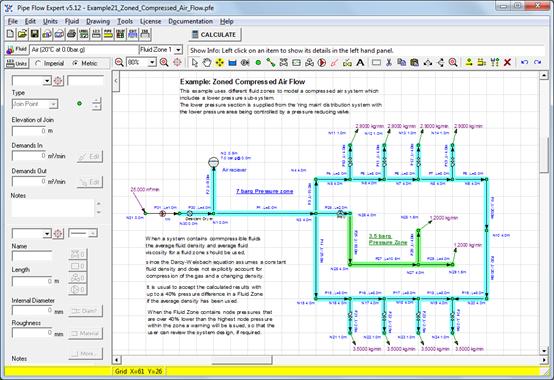

Example 21 - Zoned Pipe System for Compressed Air Distribution |
|||
|
Compressed Air Flow in Zoned Pipe System This example uses different fluid zones to model a compressed air system which includes a lower pressure sub-system. The lower pressure section is supplied from the 'ring main' distribution system with the lower pressure area being controlled by a pressure reducing valve. |
||
