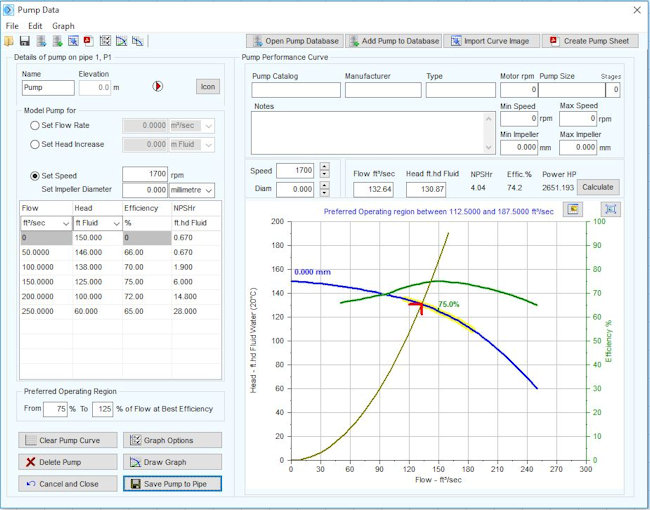

Pump Performance Curve


Pumps can be defined to produce a fixed flow rate, or to add fixed head increase, or via their flow versus pressure loss performance curve.


Pump Operating Point


When the system is solved, the pump screen shows the pump performance curve and exact operating point, giving the results flow and head that is produced.

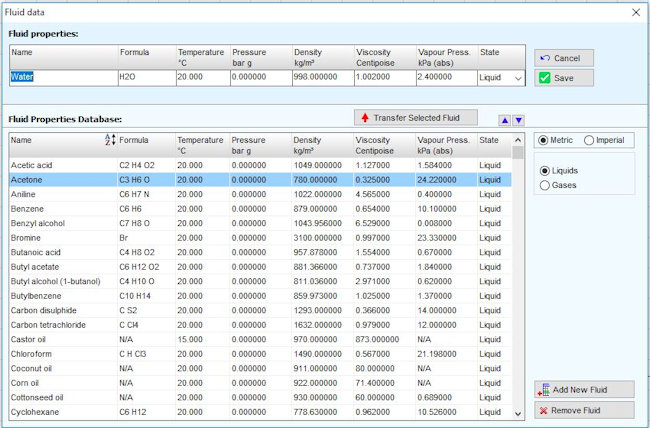

Fluids Database


The Fluids Database contains over 400 entry points for various common liquids and gases at different tempertaures. As with all of our databases, user can easily add in their own data if required.

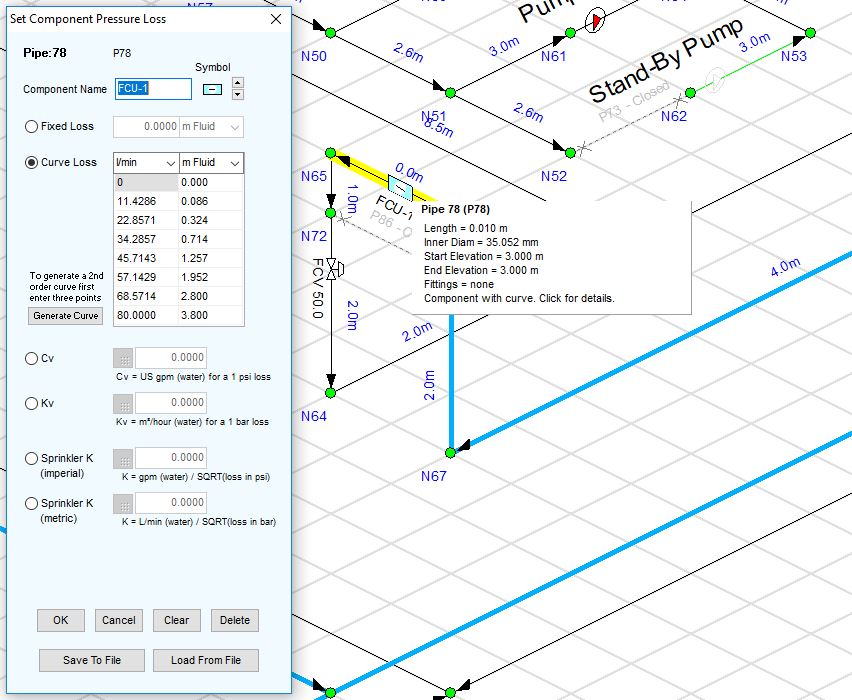

Component Modeling


Components can be modeled as a fixed loss, or by entering their flow versus pressure loss performance curve, or as Cv value, or a Kv value.
