Screenshots of Configuration Options

Hover over a screenshot to show an enlarged image with more detail.

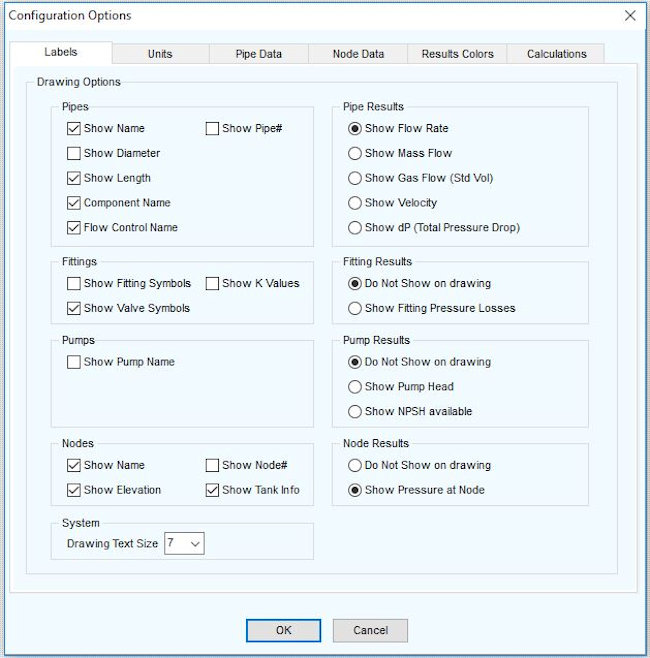

Label Options


Pipe Flow Expert allows you to customize the labels and level of details that is displayed on the drawing in both design mode and in results mode.

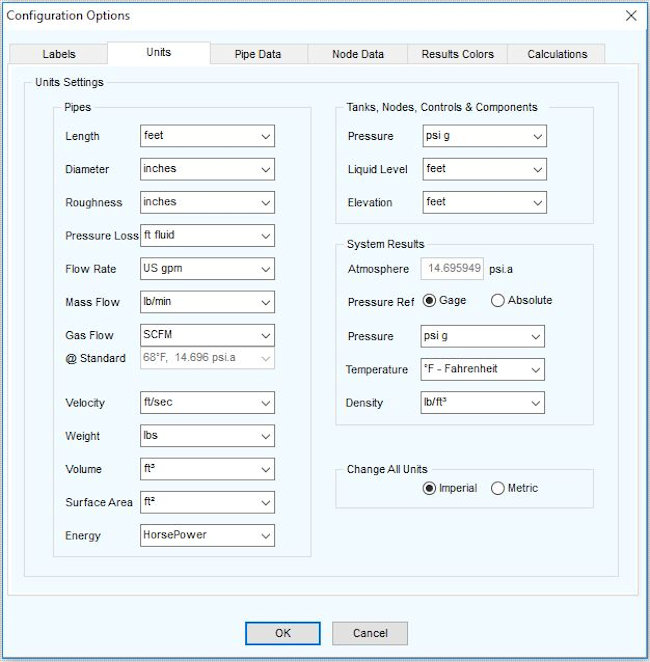

Display Units


Display Units can be configured on an individual basis for each item as required, allowing users to design and see calculated results in any combination of units they choose.

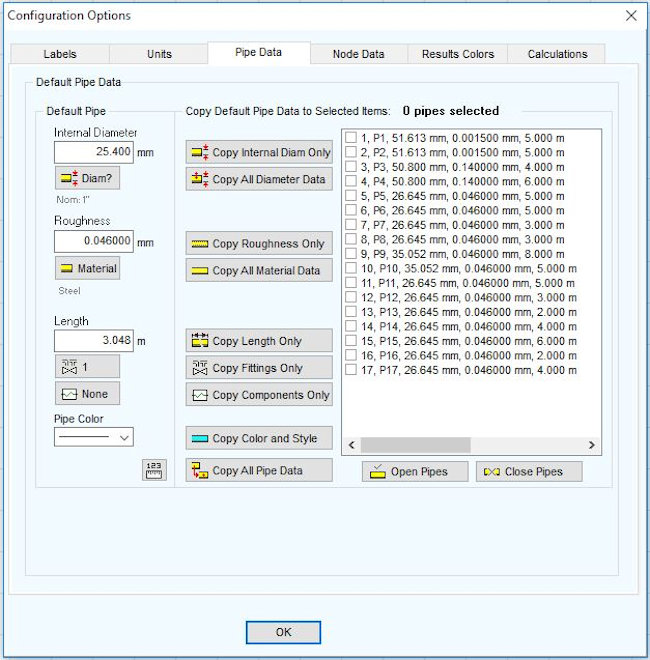

Configure Pipe Data


Pipe Flow Expert allows you to define the default pipe data that is applied when designing a pipe system and pipe data can be updated on mass across a set of selected pipes as required.

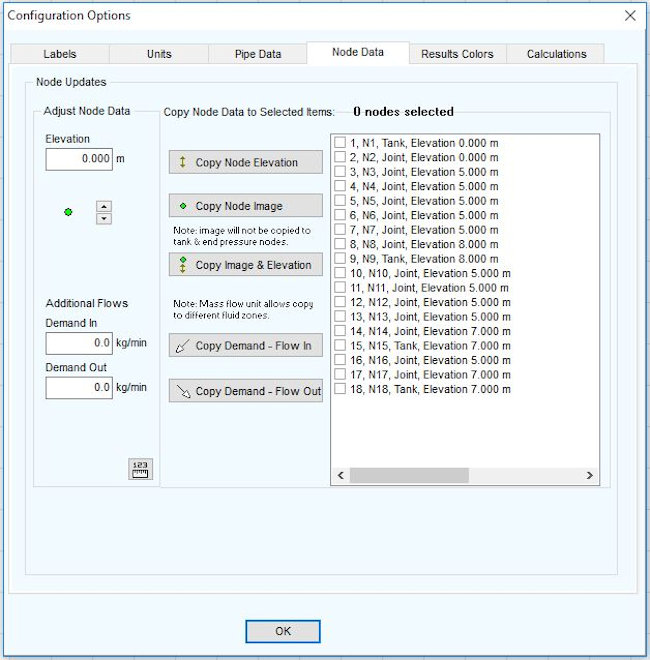

Configure Node Data


Pipe Flow Expert allows you to define and update node data across on mass with just a few mouse clicks.

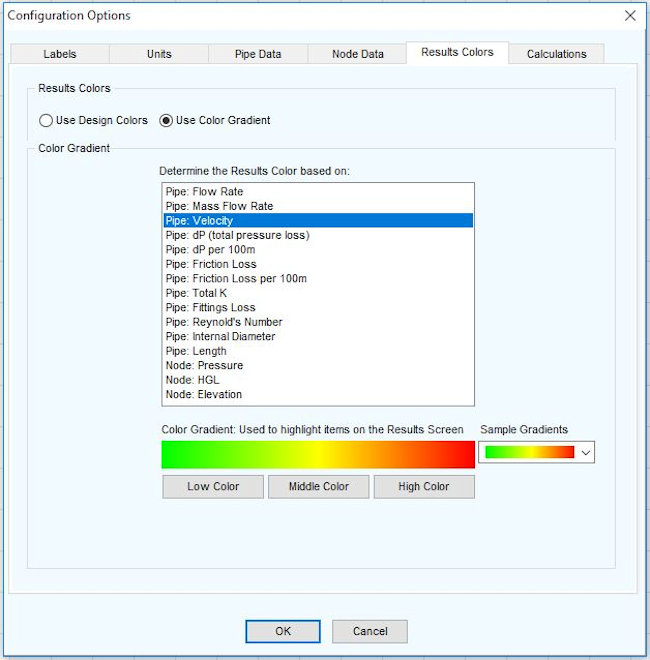

Configure Results Colors Criteria


Select criteria to use when coloring pipes and nodes in Results Mode, to allow for easy visualization, analysis and troubleshooting of your pipe system design.
