Create PDF Report of Piping Design Results

Pipe Flow Expert can create amazing PDF Reports with just a few mouse clicks. Load your own logo for inclusion on the cover sheet, select the data fields you need, and create a customized PDF report with one click.

Professional PDF Reports to document your piping design

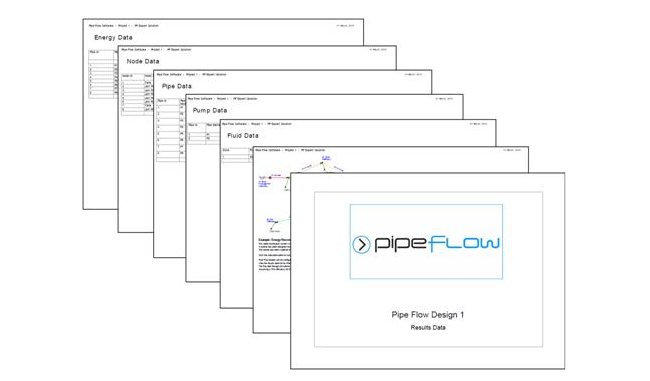

The PDF Report is created and displayed, with your logo on the cover sheet.

Choose the data to include in the PDF Report

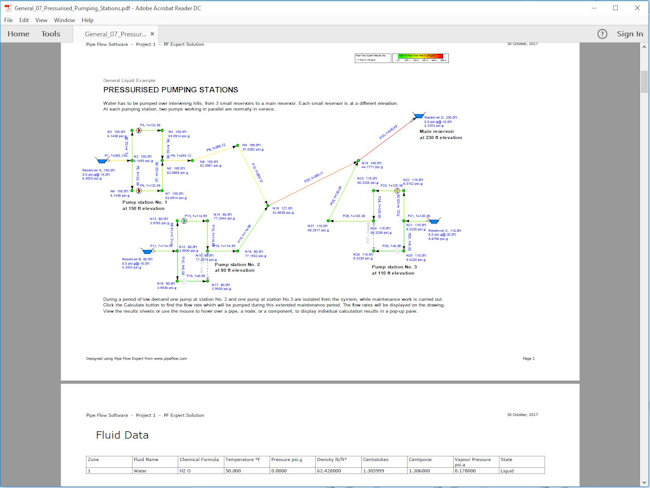

A high resolution vectorized drawing of the pipe system appears within the PDF Report.

Customized PDF Reports include your company logo

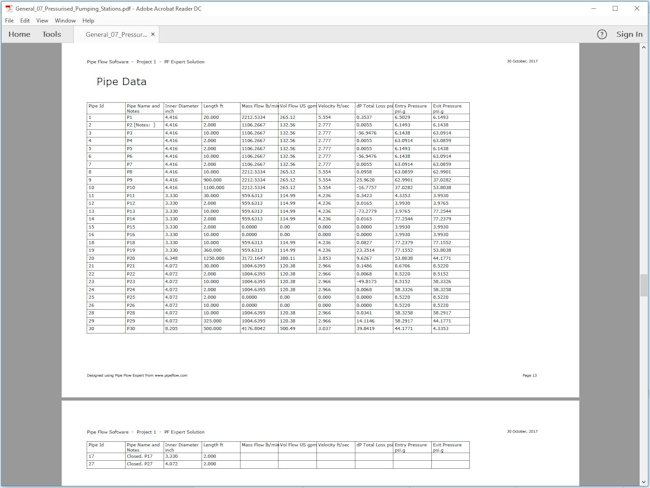

The PDF Report includes data in tables for pipes, nodes, fluids, pumps & energy usage, with each section displaying the calculated results for the data fields you have selected.
