Pipe Flow Liquid Pipe Diameter Calculator App

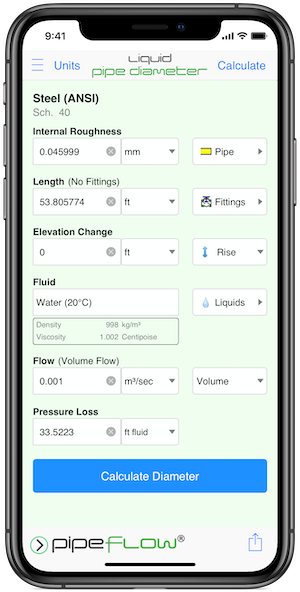

Calculate Pipe Diameter SizeThe Pipe Flow Liquid Pipe Diameter software calculates the minimum size pipe diameter that allows a given fluid flow rate at a specified maximum pressure drop. The calculation uses the Darcy Weisbach equation with Colebrook-White friction factors to compute friction losses. The software takes account of the internal roughness of the pipe material, the length of pipe, the flow rate of the liquid, the maximum allowed pressure drop, the fluid density, the fluid viscosity, and the pressure loss through any fittings and bends.
Users can select items from from the pipe database, fitting database, and fluid database, and this data can then be used in the calculation.

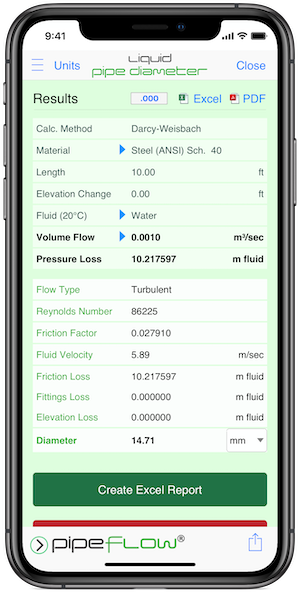

Pipe Diameter Calculation ResultsTapping "Calculate Pipe Diameter" calculates the minimum size pipe diameter that allows the specified flow rate under the defined conditions. The required diameter size is displayed on the results screen.

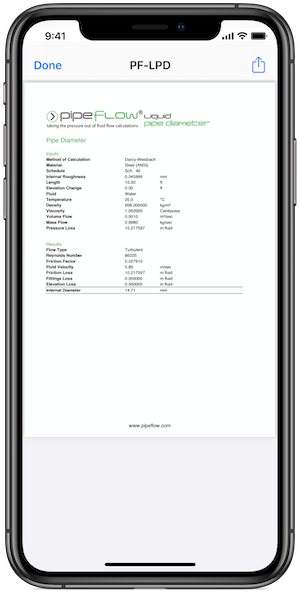

Share CalculationsCalculations can easily be saved to your device or shared with other users of Pipe Flow Liquid Pipe Diameter. The App can also generate professional PDF / Excel Reports that can be sent via email and viewed on any device.
Download Pipe Flow Liquid Pipe Diameter on the App Store
Download Pipe Flow Liquid Pipe Diameter or scan the QR code using the camera on your device.
