Pipe Flow Gas Pipe Diameter Calculator App

Pipe Flow Gas Pipe Diameter Calculator for iOS

Calculate Gas Pipe Diameter

The Pipe Flow Gas Pipe Diameter App calculates the minimum size of pipe diameter that allows a given gas flow rate within a specified pressure drop. Friction losses are calculated using specialist compressible isothermal flow equations (including the General Fundamental Flow equation, Complete Isothermal Flow equation, AGA Flow equation, Weymouth Flow equation, Panhandle A Flow equation, Panhandle B Flow equation, and the IGT Flow equation). The pressure loss in the pipe is affected by items such as the internal roughness of the pipe material, internal pipe diameter size, pipe length, gas flow rate, pressure at the start of the pipe, and gas density at the entry condition.

Users can select items from from the pipe database, fitting database, and fluid database, and this data can then be used in the calculation.

Gas Pipe Diameter Calculation Results

Tapping "Calculate Pipe Diameter" calculates the minimum size pipe diameter for the given flow rate and allowed pressure loss in the pipe. The individual pressure drops for each item (friction losses, fitting losses for valves & bends) are displayed on the results screen..

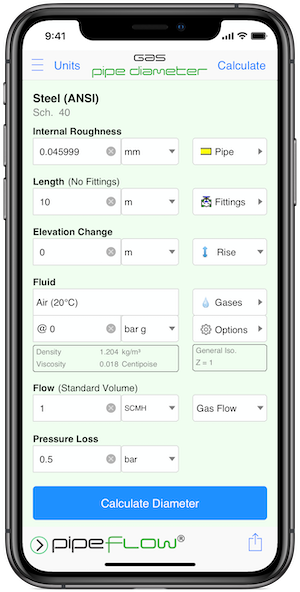

Gas Pipe Diameter Calculation Screen

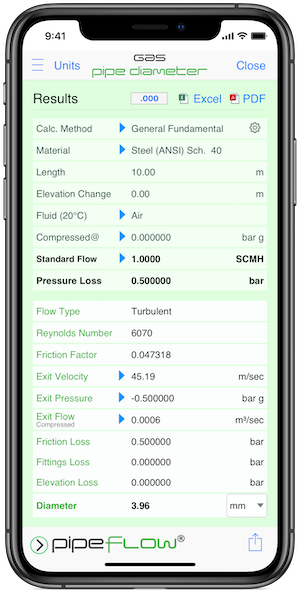

Gas Pipe Diameter Results Screen

Share Calculations

Calculations can easily be saved to your device or shared with other users of Pipe Flow Gas Pipe Diameter. The App can also generate professional PDF / Excel Reports that can be sent via email and viewed on any device.

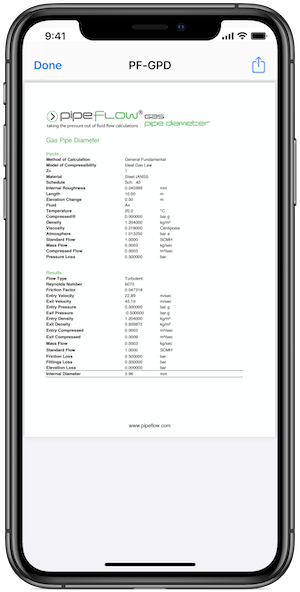

Gas Pipe Diameter Report Screen

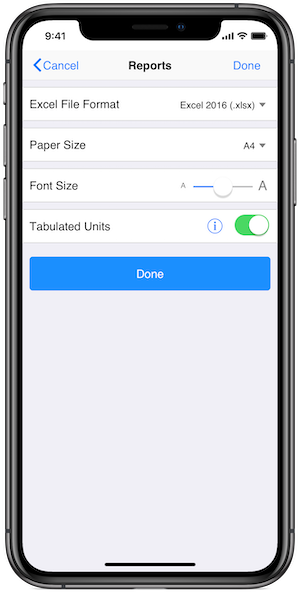

Gas Pipe Diameter Reports Options Screen

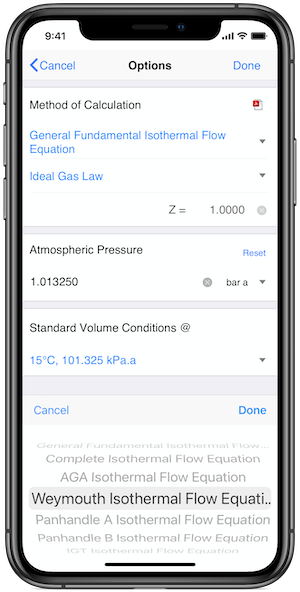

Choose Isothermal Gas Flow Equation & Compressibility Model

Users can select which compressible isothermal equation is used in the gas calculations:

General Fundamental Isothermal Flow
Complete Isothermal Flow
AGA Isothermal Flow
Weymouth Isothermal Flow
Panhandle A Isothermal Flow
Pandandle B Isothermal Flow
IGT Isothermal Flow

The calculation engine deafult setting uses the Ideal Gas Law to calculate gas density at the specified pressure conditions, however if required, a custom compressibility factor or use of the CNGA compressibility factor can be used.

The software uses a standard atmospheric pressure of 1.01325 bar, however this can be modified by the user as required.

A range of standard volume units for gas flow rate are available within the software. The user can select their required reference condition from one of the following standard conditions:
