Pipe Flow Liquid Flow Rate Calculator App
Calculate Flow RateThe Pipe Flow Liquid Flow Rate App calculates the mass flow rate, volumetric flow rate, and resulting fluid velcoity that occurs for flow of liquid in a pipe due to a pressure difference between the start and end of a pipe (the pressure drop). The calculation computes pipe friction losses using the Darcy Weisbach equation with Colebrook-White friction factors. The pressure loss in the pipe is affected by items such as the internal roughness of the pipe material, internal pipe diameter, length of pipe, fluid flow rate, fluid density, fluid viscosity, and the length of pipe.
Users can select items from from the pipe database, fitting database, and fluid database, and this data can then be used in the calculation.

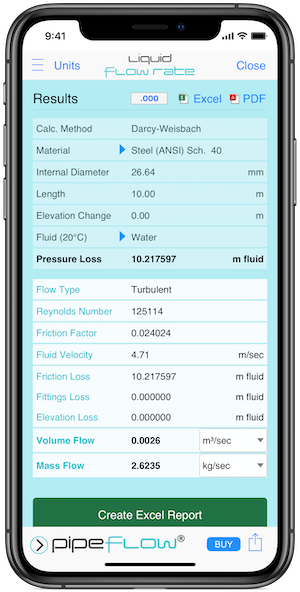

Flow Rate Calculation ResultsTapping "Calculate Flow Rate" computes the flow rate that will occur for the specified pressure loss. The fluid velocity and individual friction loss through the pipe and each fitting are shown on the results screen.
Share CalculationsCalculations can easily be saved to your device or shared with other users of Pipe Flow Liquid Flow Rate. The App can also generate professional PDF / Excel Reports that can be sent via email and viewed on any device.
Download Pipe Flow Liquid Flow Rate on the App Store
Download Pipe Flow Liquid Flow Rate or scan the QR code using the camera on your device.
