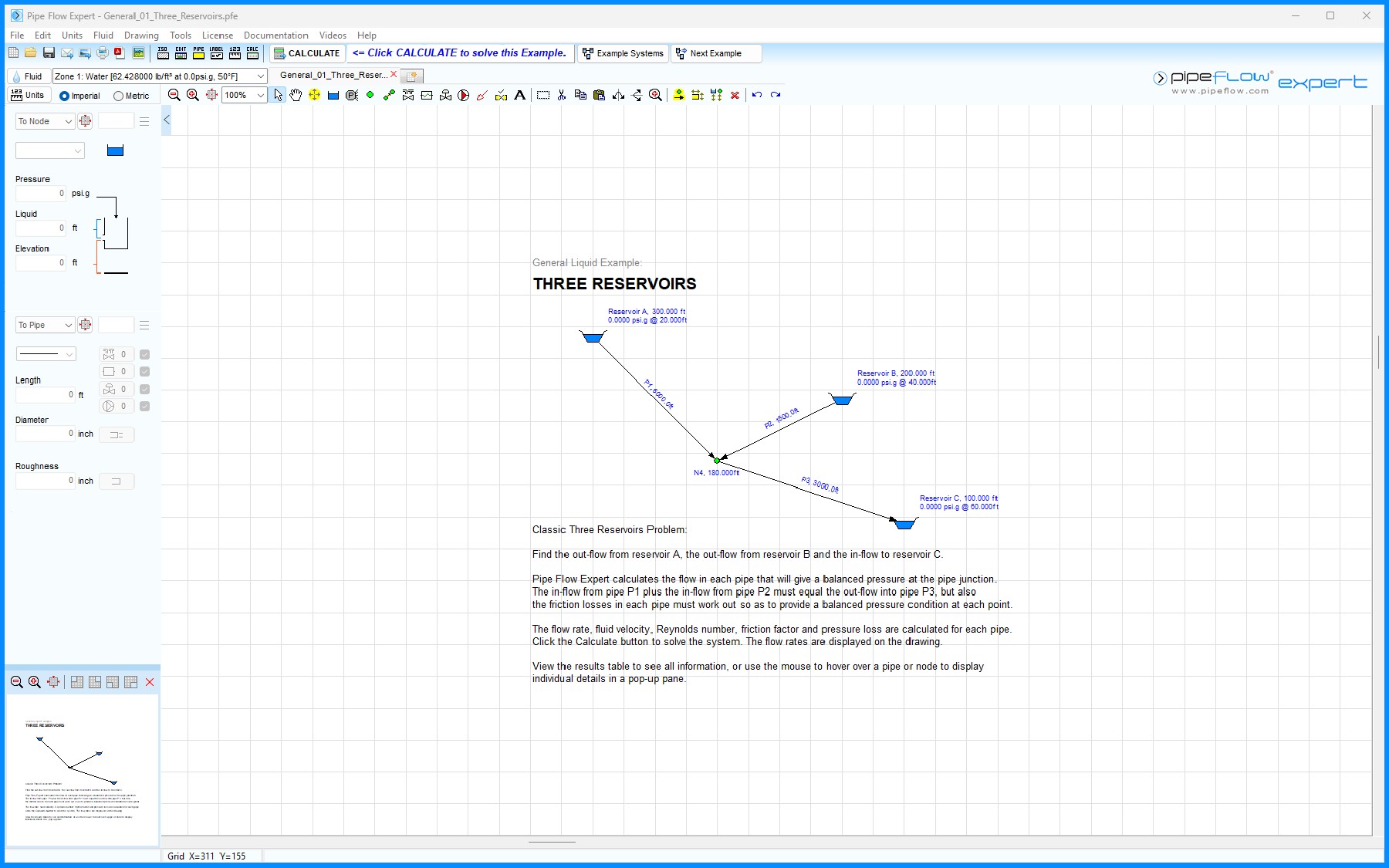

Figure 19  General 01 – Three Reservoirs

Classic Three Reservoirs Problem:

Find the out-flow from reservoir A, the out-flow from reservoir B and the in-flow to reservoir C.

Pipe Flow Expert finds the flow in each pipe which will give a balanced pressure at the pipe junction.

The in-flow from pipe P1 plus the in-flow from pipe P2 must equal the out-flow into pipe P3.

The flow rate, fluid velocity, Reynolds number, friction factor and pressure loss are calculated for each pipe.

Click the Calculate button to solve the system. The flow rates are displayed on the drawing.

View the results table to see all information, or use the mouse to hover over a pipe or a node, to display individual details in a pop-up pane.
