Fluid Data can be exported from Pipe Flow Expert to files on disk.


To export fluid data:


  1. Open the Fluid Data screen.


  1. Click the Export Fluid Data button to display the Export Fluid Sub-Menu for the currently selected fluid type.




  1. Click the required export option:


    1. Export Selected Liquid / Gas.
      Exports the currently selected liquid or gas.
      1. In the Save As dialog, navigate to the folder in which the exported fluid data is to be saved.
      2. A default filename will be defined or can be edited as required.
      3. Click Save.
    2. Export All User Liquids / Gases.
      Exports all the user liquids or gases defined in the fluid database.


When there is only one user fluid:

      1. In the Save As dialog, navigate to the folder in which the exported fluid data is to be saved.
      2. A default filename will be defined or can be edited as required.
      3. Click Save.

When there are multiple user fluids:

  1. In the Select Folder dialog, navigate to the folder in which the exported fluid data is to be saved.
  2. Click Select Folder
    1. Export All Standard Liquids / Gases.
      Exports all the standard liquids or gases defined in the fluid database.


When there is only one standard fluid:

      1. In the Save As dialog, navigate to the folder in which the exported fluid data is to be saved.
      2. A default filename will be defined or can be edited as required.
      3. Click Save.

When there are multiple standard fluids:

  1. In the Select Folder dialog, navigate to the folder in which the exported fluid data is to be saved.
  2. Click Select Folder


  1. A message dialog is displayed providing details of the fluid data being exported.

    When there is only one fluid being exported, the dialog displays the folder where the fluid data will be saved and the name of the exported fluid file.

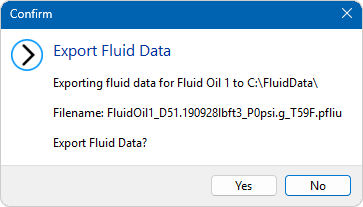

Figure 145 Export Fluid Data (Single File) Dialog

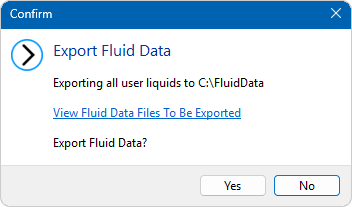

When there are multiple fluids being exported, the dialog displays the folder where the fluid data will be saved and a link to display the filenames of the fluid data to be exported.


Figure 146 Export Fluid Data (Multiple Files) Dialog



Click View Fluid Data To Be Exported to view the filenames of the fluid data to be exported.

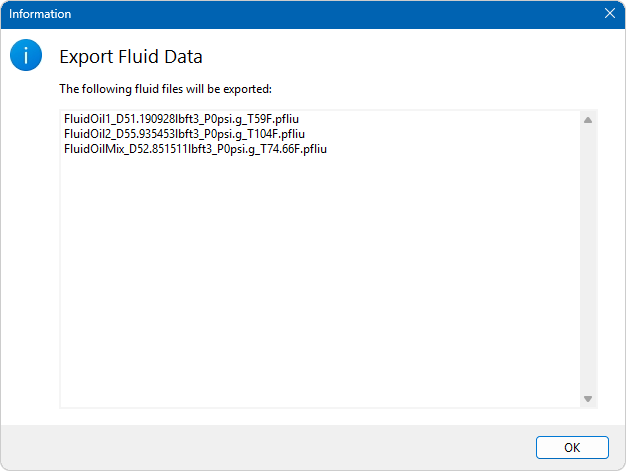

Figure 147 Export Fluid Data – Fluid Data Files Preview




  1. Click Yes to export the fluid data to the chosen folder, otherwise click No.



Exported Fluid Data Filename Format


Exported fluid data files are automatically named using a structured format that embeds key fluid properties directly into the filename.  This naming convention ensures that each exported file is self-describing and can easily be matched to its corresponding fluid conditions.

The filename format is:


<Fluid Name>+D<density>_P<pressure>_T<temperature>.<extension>



The extension (file type) will be in accordance with the following:


File Type

Description

.pfli

These are standard Pipe Flow fluid files that contain liquids and are distributed with the software or available from Pipe Flow Software.

.pfga

These are standard Pipe Flow fluid files that contain gases and are distributed with the software or available from Pipe Flow Software.

.pfliu

These are user defined liquid files that contain liquids created using the Pipe Flow Expert software.

.pfgau

These are user defined fluid files that contain gases created using the Pipe Flow Expert software.


Once the fluid data has been successfully exported, a confirmation dialog is displayed confirming the folder and filename(s).


Handling Existing Files During Fluid Data Export


If a file with the same name already exists in the selected export folder, Pipe Flow Expert displays a confirmation dialog to prevent accidental overwriting.

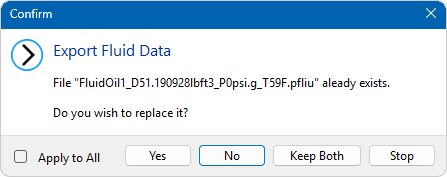

Figure 148 Export Fluid Data Existing Files Dialog



This dialog provides several options for how to proceed:


Option

Description

Yes

Replace the existing file with the newly exported one.

No

This is the default option.
Do not replace the existing file.
The export for that fluid file will be skipped.

Keep Both

Save the new file alongside the existing one.
A numerical suffice (e.g. 1,2,3 etc.) is automatically appended to the filename to ensure a unique name based on what already exists in the folder.

Stop

Cancel the entire export process immediately.

Apply to All

The checkbox option is intended for use with Yes, No or Keep Both, allowing the selected action to be automatically applied to all remaining files in the export operation without prompting again.


This confirmation process ensures that users have full control over how existing files are handled and helps prevent unwanted overwriting of fluid data.


Once the fluid data is successfully exported, an information dialog is displayed to confirm the process is complete and to give the user an opportunity to view the export log.

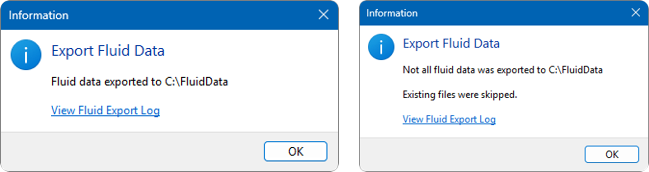

Figure 149 Export Fluid Data to Disk – Export Complete Dialogs





The export log lists every file processed and indicates whether it was successfully exported or skipped.

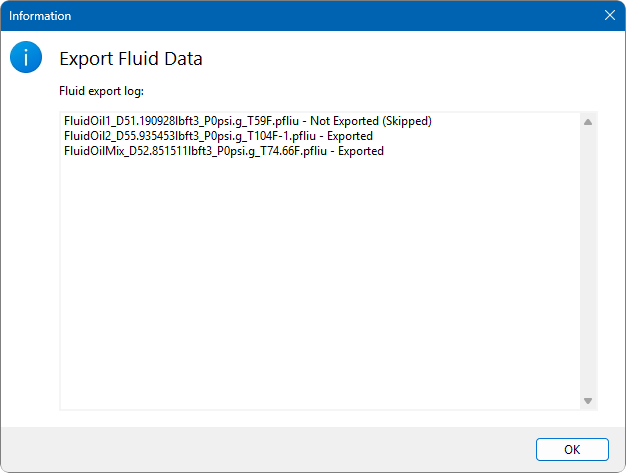

Figure 150 Fluid Data Export To Disk – Export Log
