End Pressure Data

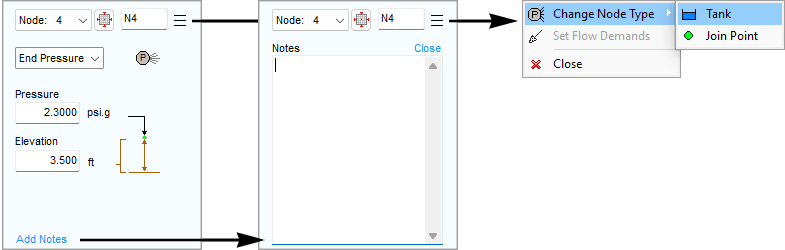

Figure 15 End Pressure Node Pane
|
Feature |
Description |
||
|
Node Id List |
Use the Node dropdown list to select a Node or to scroll through each of the Nodes in the pipe system. |
||
|
Node |
The name of the Node currently selected in the Drawing Pane. Use the Node field to edit the Node name. |
||
|
Zoom |
Click the Zoom button to re-display the drawing with the selected Node at the center of the visible drawing area. |
|
|
|
Menu |
Opens the End Pressure sub menu which provides further options to:
A Right Click on an End Pressure will also display the End Pressure sub menu. |
||
|
Type (End Pressure) |
The type of Node currently selected in the Drawing Pane. Use the Type field to modify the Node type. There are three types of Nodes – Join Point, Tank, or Demand Pressure (End Pressure). |
||
|
Type (End Pressure Icon) |
Displays the image representing the selected Demand Pressure in the Drawing Pane. Click the Icon to select the End Pressure image you want displayed on the pipe system drawing. The icon size can be selected from a range of scales. The image you select does not affect any of the Demand Pressure’s properties or values. |
|
|
|
Pressure |
The required pressure for the End Pressure expressed in the units displayed. |
||
|
Elevation (of Pressure Point) |
The elevation of the End Pressure expressed in the units displayed. |
||
|
Add Notes |
Opens a text area where you can enter notes about the Node currently selected in the Drawing Pane. Notes can be up to 200 characters. |
||
