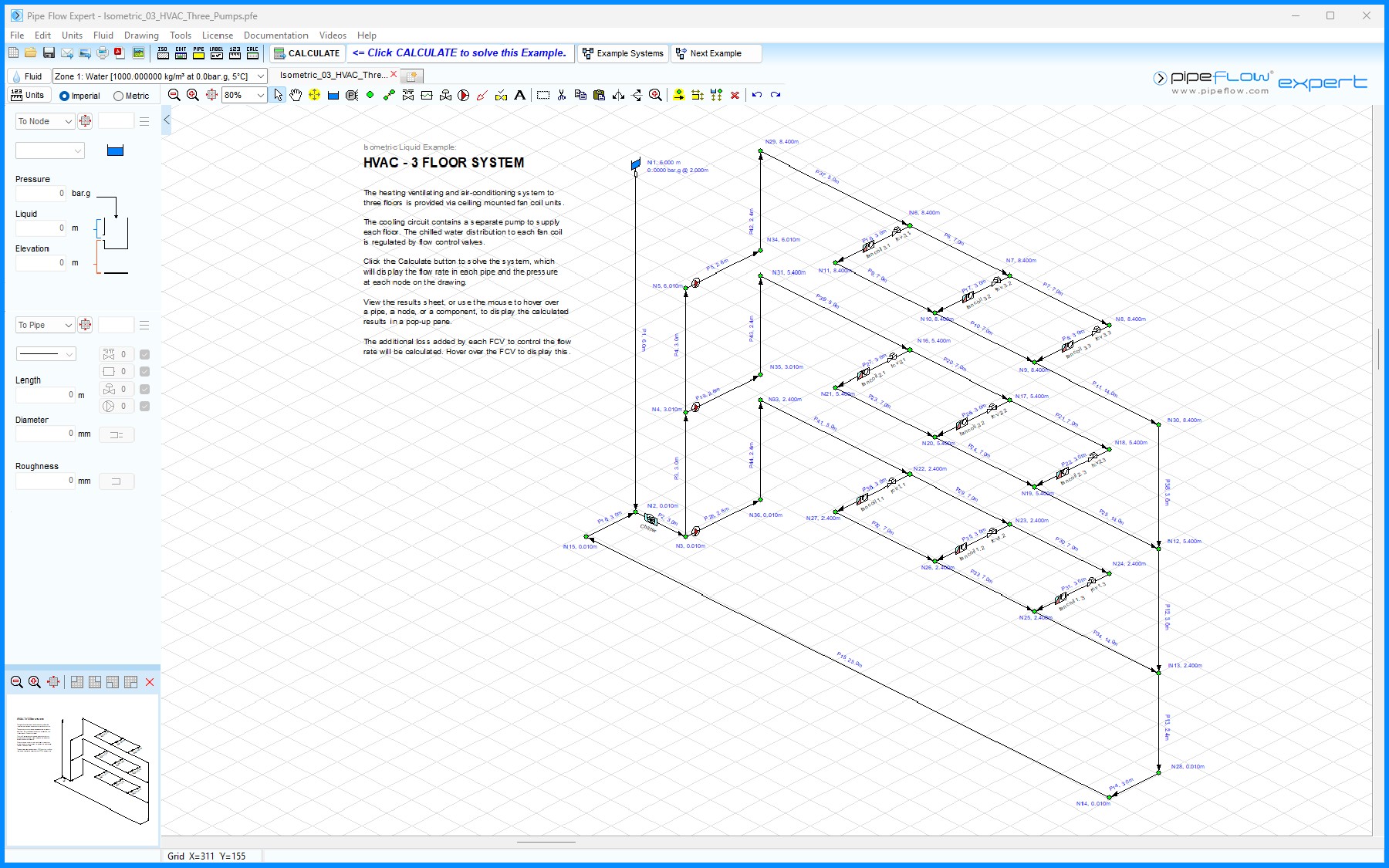

Figure 38  Isometric 03 – HVAC Three Pumps

The heating ventilating and air-conditioning system to three floors is provided via ceiling mounted fan coil units. The cooling circuit contains a separate pump to supply each floor. The chilled water distribution to each fan coil is regulated by flow control valves.

Click the Calculate button to solve the system, which will display the flow rate in each pipe and the pressure at each node on the drawing. View the results sheet, or use the mouse to hover over a pipe, a node, or a component, to display the calculated results in a pop-up pane.

The additional loss added by each FCV to control the flow rate will be calculated. Hover over the FCV to display this.
