Pipe Flow Expert Software User Guide - Adding a Sharp-Edged Orifice

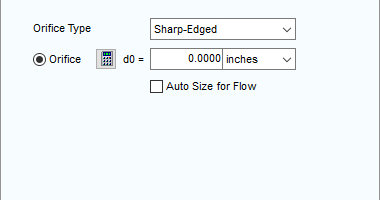

To define a Sharp-Edged orifice with a specific diameter (d0):

1. Select the Sharp-Edged Orifice Type.

2. Enter the Orifice Diameter (d0) as required.

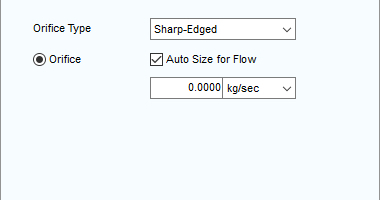

To define a Sharp-Edged orifice with a diameter (d0) for a specific flow rate:

1. Select the Sharp-Edged Orifice Type.

2. Select the Auto Size for Flow checkbox and enter the flow rate required.
